PRO TREND

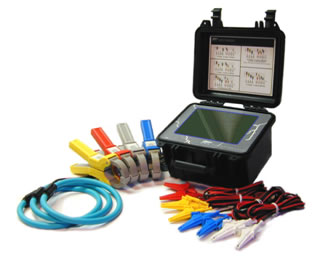

The Pro Trend three-phase power quality analyzer is an advanced power monitoring instrument with an 8.4” color touch screen display. It helps to find, predict, and troubleshoot problem in three and single-phase power distribution systems.

Troubleshooting is faster with on-screen display of trends and captured events. A wide range of power monitoring data is collected, analyzed and tabulated to quickly identify areas of concern. Automated setups provide instant detection of circuits and configurations, guaranteeing that the instrument is ready to successfully collect data. The Pro Trend collects data at 256 samples per cycle per channel, meets IEEE 1159, IEC 61000-4-30 standards. The Pro Trend is perfectly suited for field use, having a weather-proof case weighing in at just 4½ kg.





Features:

  1. Real Time monitoring for simple troubleshooting
  2. Measure wide range of parameters, including true RMS and peak V and I; Frequency, Sag, Swells, Transients, Interruptions, Power and Power consumption, Demands, Harmonics up to 127th, Inter-harmonics, Flicker, Inrush and unbalance, Crest factor
  3. Records voltage, current, power, THD, Waveform snapshots and Flicker (IEC 868, IEC 61000-4-15 PST and PLT)
  4. Record Min, Max and AVG of several parameters on all 4 channels with resolution down to 1 seconds
  5. Easy to navigate, color graphic user interface
  6. Large color touch screen display – data can be viewed in real time using scope mode, meter mode, trend, harmonic spectrum or pharos diagram. Data can be viewed and zoomed for more details with the touch of a finger
  7. Generate PQ reports in few second
  8. Characterize and tabulate RMS events (IEEE & IEC)

SPECIFICATIONS

  Measured Parameters (4) differential inputs (Transformer-Isolated channels + neutral all internally fused), 1-600 Vrms, AC, 0.1% rdg + 0.05% FS


256 samples/cycle, 16 bit ADC

(4) inputs with CTs 1-3000 Arms CT-dependent, AC,
0.1% rdg + CTs

Frequency Range, 10 mHz resolution, 15-20 Hz, 45-65 Hz
or (350-450 Hz optional)

Monitoring/Compliance IEEE 1159 / IEC 1010

IEC 61000-4-30 Class A

EN50160 Quality of Supply

Current Inrush / Energization

Event Fault Recording

Power Quality Monitoring

Continuous Data Logging

Power Quality Triggers Cycle-by-cycle analysis

256 samples/cycle; 1/2 cycle RMS steps

L-L, L-N, N-G RMS Variations: Sags/swells/interruptions

RMS Recordings V & I (10 pre-fault, 10K post-fault cycles)

Wave shape Recordings (10 pre-fault )

Low and Medium Frequency Transients

High Frequency Transients

Harmonics Summary Parameters

RMS Event Characterization (IEEE or IEC)

Transient Event Characterization

Distortion/Power/Energy W, VA, VAR, TPF, DPF, CF, Demand, Energy, etc.

IEEE 1459 Parameters of distorted and unbalanced

Harmonics / Interharmonics per IEC 61000-4-7

THD / Harmonic Spectrum (V,I,) to 127th

THD / Interharmonic Spectrum (V,I) to 63rd

Flicker per IEC 61000- 4-15 (Pst,Plt)

Unbalance (max rms deviation) & sequencing components


    Available Languages English, French, Spanish,

General Specifications Size (W x L x H): 9 ¼ " x 10 ¼ " x 7" (25cm x 27cm x 18cm)

Weight: 4.5 kg

Operating Temperature: -20º to 65º C (14º to 131º F)

Storage Temperature: -30º to 75º C (4º to 149º F)

Humidity: 10 to 90% non-condensing

System Time Clock-Crystal controlled-1 second resolution

Charger / Battery Eliminator: 90-264 VAC 47-63 Hz

Display: 8.4” TFT color LCD with touch screen

Memory: 16GB


Optional Accessories Current Probes: An extensive selection, including:

Model M357 To M360 0.1-7.5A; up to 0.5" conductors

Model M319 To M322  100 or 1000A; up to 2.56" diameter
or 1.97" x 0.2"conductors

Model M349 To M352 300-3000A; up to 2.56" diameter or 1.97" x 5.3" (bus bar)

 Model M414 To M417 100/300/1000A; up to 2.56" conductors
(Switch selectable range)

 Model MFX419 To MSX422 Flexible probes from 100-1000A, 24", 36", 48”
 Model MFX519 To MSX522 Flexible probes from 300-3000A, 24", 36", 48"

Fused Voltage Leads Accessory Pack (FVL-1500)

Soft Carrying Case (SCC-1500)

External Battery Charger (XBC-1500)

Reusable Shipping Container (RSC-1500)

Weatherproof Lockable Portable Case (WLPC-1500)

Communication Interface:

Wireless LAN

Pro Trend software: Runs under Windows XP, 7 and 8

CD-ROM Training Program

Safety Specification EN61010-1; 1000 V CAT III / 600 V CAT IV CAN-CSA

Specifications subject to change without notice
